2016 Devil Repair
2016 Devil Repair Video (3.39MB) Spray, Shake, Scare, Reset, and Horn
Halloween DEVIL CAN 1.2 born 2010

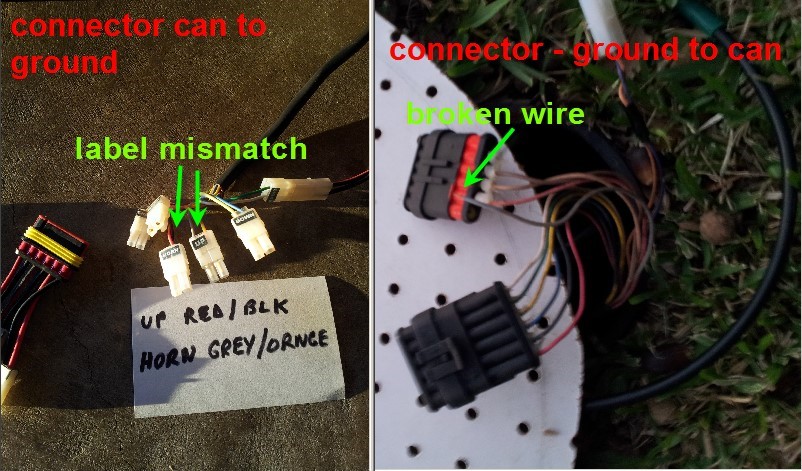

Complete system check discoverd a mismatched label and what was thought to be a broken wire.

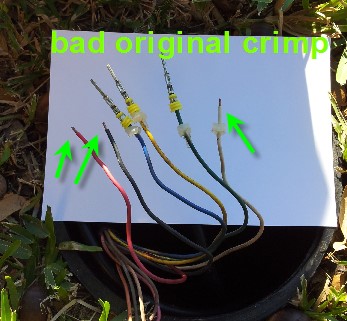

Upon further inspection it was discovered that many wires had been pulled from their original crimp.
Good news = wires are not being broken. Bad news = oops on the original crimp job.

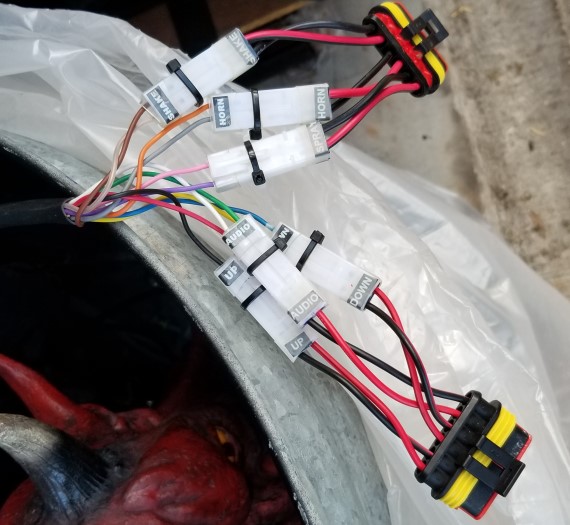

Perfect new crimps. Replaced and recrimped both connectors. Only one shown below.

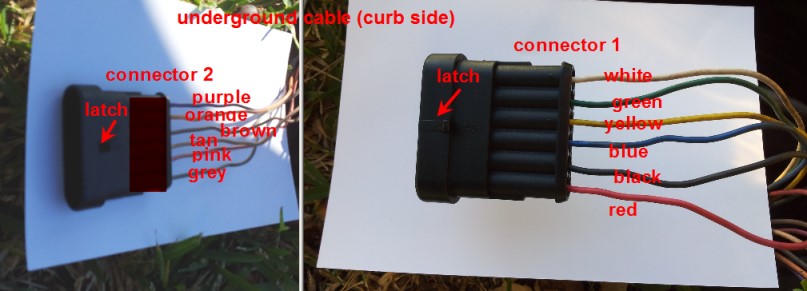

Post repair new connectors. Wire diagram for future reference.
